    High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China

    Ask Lasest Price
    Price : 10-20
    Payment Terms : L/C,D/A,D/P
    Supply Ability : 10000
    Delivery Time : 5-9
    • Product Details
    • Company Profile

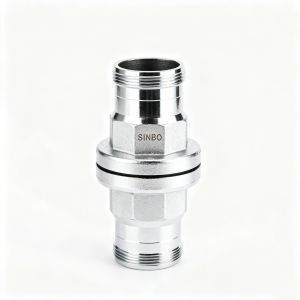

    High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China

    Product Description

    The fire hose quick connector is a critical mission-specific module for special robots, designed for high-risk environments such as explosion-proof, rescue, and aerospace operations. Manufactured from full brass through CNC machining centers (e.g., VMC1060 series with 0.02~0.03mm precision), it ensures quick connection and reliable sealing. This connector enables rapid coupling between hoses, fire trucks, hydrants, or water guns, reducing connection time to 7.8 seconds (80% faster than traditional methods), significantly enhancing robot response efficiency in firefighting tasks.

    Features
    1. Quick Connect/Disconnect: Leveraging internal claw grooves, it connects with a 90° clockwise rotation and disconnects counterclockwise, enabling tool-free operation.
    2. High Sealing Performance: Multi-layer sealing structure (rubber seals, seal seats, and grooves) prevents leakage under high pressure.
    3. Full Brass Construction: Corrosion-resistant and durable, suitable for high-temperature and high-pressure environments, compliant with GB12514.1-2005 standards.
    4. Modular Compatibility: Integrates seamlessly with various hose specifications (DN50/65/80/100) and robot platforms via quick-swap design.
    5. Explosion-Proof Design: Certified for flammable and explosive environments through structural and electrical safety standards.
    Technical Parameters Table
    Parameter CategoryValueRemarks
    ModelKD50/65/80/100Multi-caliber hose compatibility
    MaterialFull BrassHigh strength, corrosion-resistant
    Working Pressure≤2.5 MPaMeets high-pressure firefighting demands
    Connection Time≤7.8 secondsTraditional methods take 36s
    Sealing PerformanceZero LeakageMulti-layer seals (rubber + metal seat)
    Operating Temperature-40°C~120°CExplosion-proof and flame-retardant
    Machining Precision0.02~0.03mmCNC precision (VMC1060-based)
    CertificationGB12514.1-2005, CCCFChina compulsory fire product certification
    Applications
    • Firefighting Robots: Integrated into tracked fire reconnaissance and extinguishing robots for remote water supply, replacing humans in toxic or high-temperature environments.
    • Explosion-Proof Robots: Deployed in petrochemical or coal mine settings for rapid cooling or fire suppression.
    • Aerospace & Military Equipment: Facilitates quick fluid transfer in launch sites or military rescue robots.
    • Urban Emergency Rescue: Compatible with smart security robots for tunnel and confined space firefighting.
    Customization Services

    Custom designs tailored to robot platform requirements:

    • Size Adaptation: Supports non-standard hose diameters (e.g., DN40/DN120) or spatial layouts.
    • Material Upgrade: Options include stainless steel or aluminum for lightweighting or enhanced corrosion resistance.
    • Functional Expansion: Sensor interfaces (e.g., pressure monitoring, auto-release) for smart robot integration.
    • Rapid Prototyping: Small-batch production via CNC machining centers (e.g., VMC1160) with lead times of 2-4 weeks.
    Support and Services
    • Technical Consultation: Guidance on robot integration, including hose storage mechanisms and sealing optimization.
    • After-Sales Warranty: 13-month warranty, lifelong maintenance, with spare parts and on-site debugging.
    • Global Supply: OEM/ODM cooperation supported, with ISO 9001-certified production lines.
